PoE Switch Description:

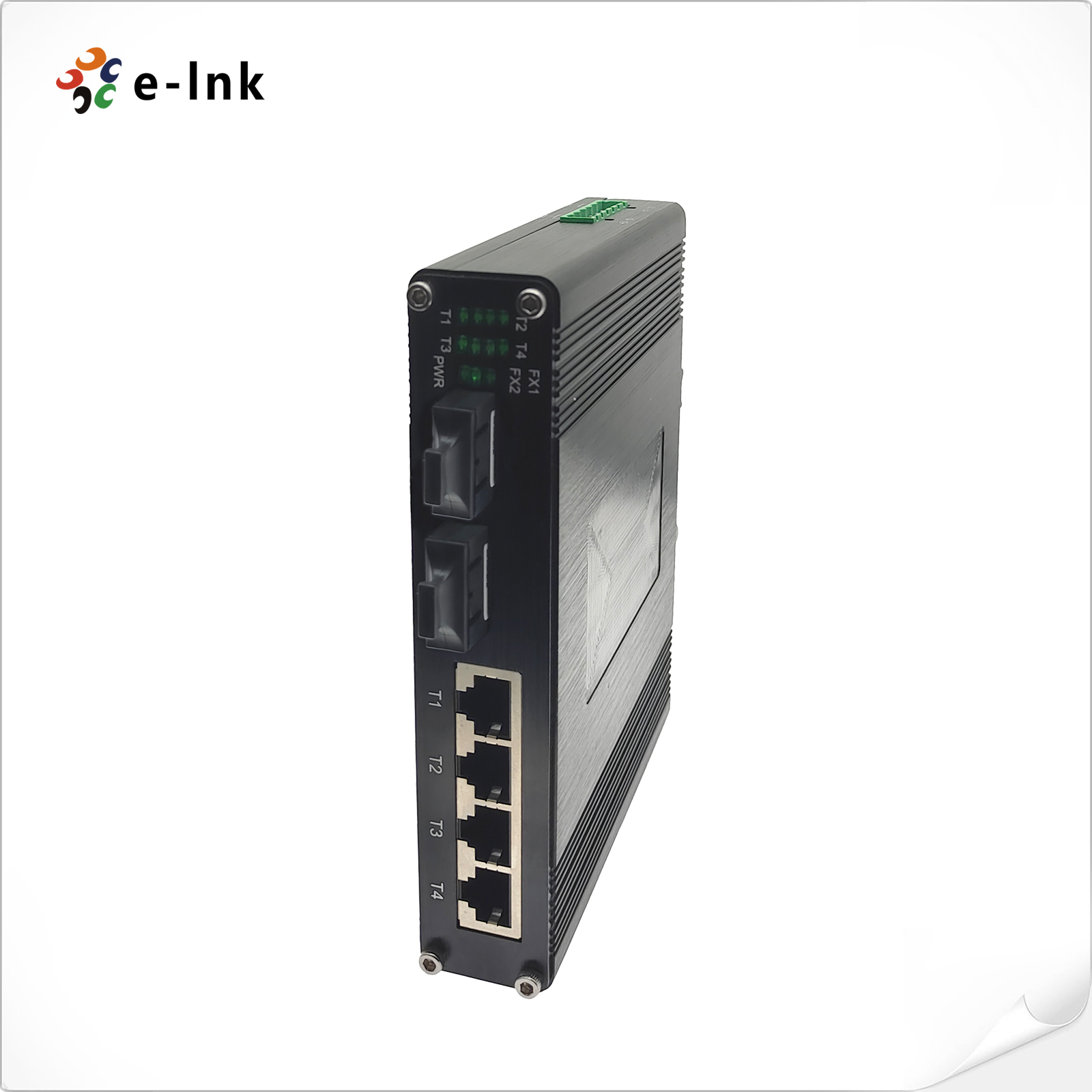

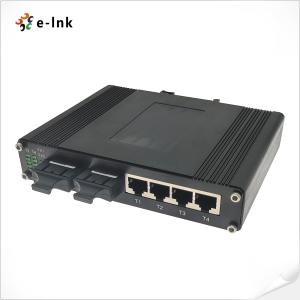

The LNK-IMC204P is a durable PoE switch with 4 10/100Base-TX ports and 2 100Base-FX ports. It offers PoE+ capabilities for various Powered Devices, allowing them to receive both power and data through the RJ-45 cable. The 1000Base-FX port supports Single-mode or Multi-mode fiber with 1 or 2 cores.
With its dependable design and user-friendly operation, this product is an excellent option for connecting network devices like IP cameras and wireless access points across different locations.
Outdoor PoE Switch Features:
The switch provides 4 10/100Base-TX ports and 2 100Base-FX ports. The 10/100Mbps RJ45 ports support full/half-duplex, auto-negotiation, and auto MDI/MDIX. Utilizing store-and-forward transmission, it ensures efficient data transfer. The switch also supports IEEE 802.3at PoE+ with a capacity of 30W per port, and offers SFP, SC, FC, and ST options. Other features include 802.3x flow control and IEEE 802.3az Energy Efficient Ethernet (EEE). With redundant power inputs, it ensures a reliable power supply. The switch can be mounted on a wall or DIN-rail and can operate in temperatures ranging from -40°C to 80°C (-40°F to 176°F).
Ethernet Switch Technical Parameters:
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3x Flow Control |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| Cabling: | 10Base-T: Cat5 or above |
| 100Base-TX: Cat5 or above |
| Processing Type: | Store-and-Forward |
| Maximum Distance | Cat5 UTP up to 100m |
| Address Table Size: | 1024 MAC Addresses |
| Interface |
| Connector: | 4 x RJ45 |
| Optical Port: | 2 x 100Base-FX (SFP, SC, FC, ST Optional) |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | 48~57VDC , Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 132W Max. (PoE in use) |
| 5W Max. (PoE not in use) |
| Standard: | IEEE802.3af/at |
| PoE Port: | RJ45 Port 1 ~ Port 4 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| Dimensions (WxDxH): | 150 x 115 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Packing and Shipping:
Packaging and Shipping
Our Industrial PoE Switch comes in a sturdy and durable packaging to ensure safe delivery to our customers. The packaging is designed to withstand rough handling and protect the switch from any damage during shipping.
Each switch is carefully packaged with foam and plastic wrap to prevent any scratches or dents. The package also includes all necessary accessories, such as power cords and mounting kits, to make installation and setup easy for our customers.
For shipping, we use reliable and trusted carriers to ensure timely and secure delivery of our products. Our shipping partners have a proven track record of delivering packages safely and on time.
We also offer customized packaging and shipping options for bulk orders to meet the specific needs of our customers. Our team works closely with customers to determine the most suitable packaging and shipping method for their order.
At Industrial PoE Switch, we take great care in packaging and shipping our products to ensure they arrive in perfect condition. With our commitment to quality and customer satisfaction, you can trust us to deliver your Industrial PoE Switch safely and on time.
Industrial PoE Switch Ordering Information:
| Model | Description |
| LNK-IMC204P | Industrial Ethernet Switch: 4-Port 10/100Base-TX(4-port PoE+) + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
| LNK-IMC204P-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX(4-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC204PS-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX(4-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC204PF-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX(4-port PoE+) + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC204P-SFP | Industrial 4-port 10/100BASE-T (4-port PoE+) + 2-port 100BASE SFP Ethernet Switch |
