4 Port 10/100T Industrial Ethernet Switch With 2-port 100M SC Dual Fiber 2KM

Product Description:

The LNK-IMC204 is a versatile Industrial Ethernet switch that features 4 ports for 10/100Base-TX and 2 ports for 100Base-FX. This switch provides 4 TP ports and 2 fiber ports, offering a combination of reliable and high-speed connectivity options for industrial networks.

The TP (RJ45) ports are capable of supporting both 10/100Base-T(X) and full/half duplex modes, allowing for flexible network configurations. Additionally, the ports have an auto MDI/MDI-X connection feature, which helps to simplify the network setup process. On the other hand, the 100Base-FX ports support 1 or 2 core Single-mode or Multi-mode fiber, providing high-speed and long-distance connectivity options.

The LNK-IMC204 is an ideal choice for integrating networks that consist of various devices, such as IP cameras and wireless access points, across different locations. Its reliable design and user-friendly features make it a top choice for industrial network deployments.

Features:

This device is equipped with four 10/100Mbps RJ45 ports and two 100Base-FX ports, providing fast and stable network connectivity. These ports support full or half-duplex communication, auto-negotiation for optimal speed, and auto MDI/MDIX for easy installation. The device also supports 802.3x flow control, ensuring efficient and reliable data transmission.

Additionally, this device is IEEE 802.3az Energy Efficient Ethernet (EEE) compliant, helping to reduce power consumption and costs. It also features redundant power inputs for added reliability.

The device can be easily installed using either wall-mount or DIN-rail methods. With an operating temperature range of -40°C to 80°C (-40°F to 176°F), it can withstand harsh environments and provide stable performance.

Technical Parameters:

Ethernet

Standards:

• IEEE802.1 10Base-T,
• IEEE802.3u 100Base-TX,
• IEEE802.3 100Base-FX,
• IEEE 802.3az Energy Efficient Ethernet (EEE),
• IEEE802.3X Flow Control

Forward & Filtering Rate:

• 14,880pps (10Mbps),
• 148,800pps (100Mbps)

Packet Buffer Memory: 512K bits

Processing Type: Store-and-Forward

Address Table Size: 1024 MAC Addresses

Interface

Connector: 4 x RJ45

Optical Port: 2 x 100Base-X (SFP, SC, FC, ST Optional)

Environmental

Operating Temperature: -40°C to 80°C (-40°F to 176°F)

Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Relative Humidity: 5% to 95% non-condensing

MTBF: > 200,000 hrs

Electrical and Mechanical

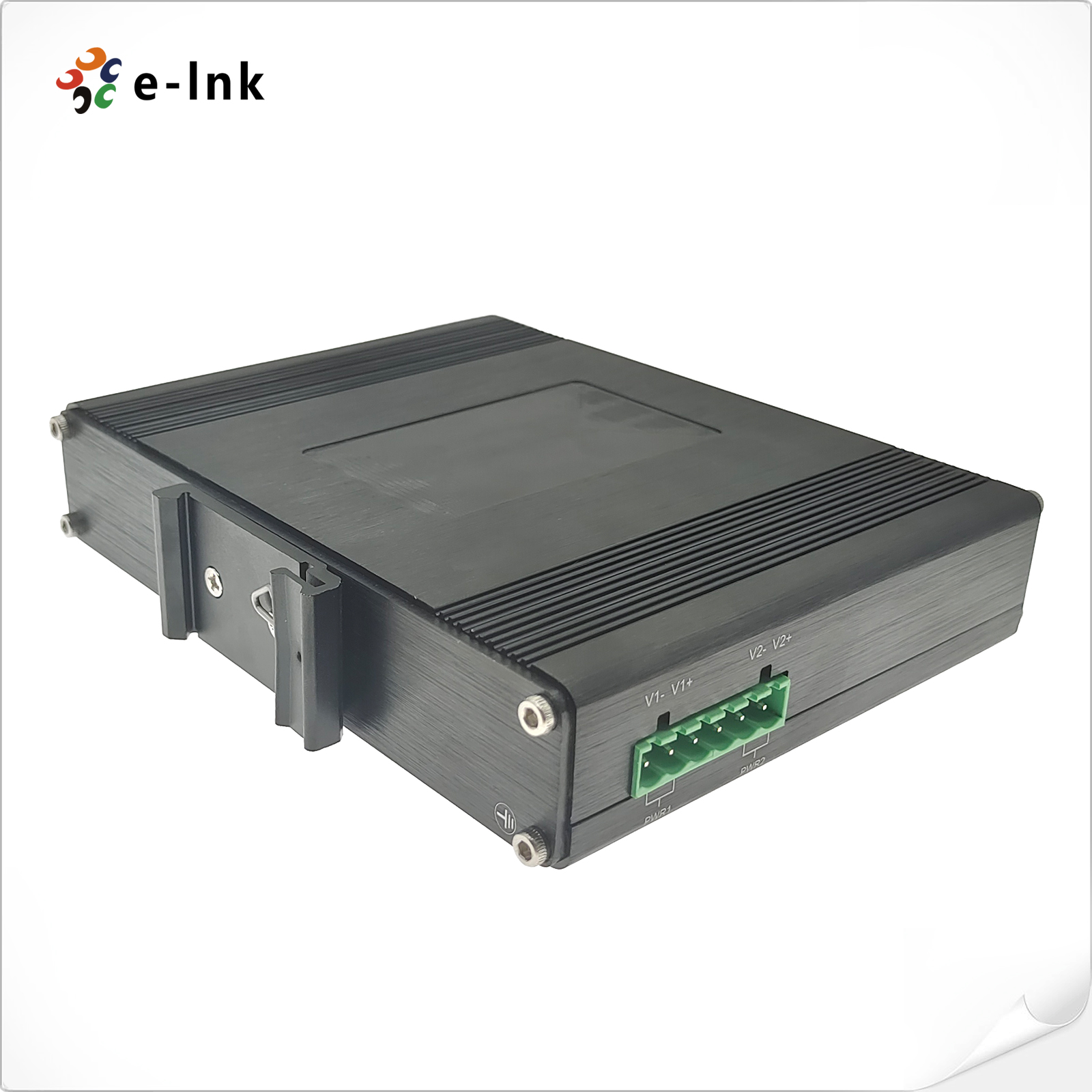

Input Power: 12~58VDC, Redundant Power (6-pin Terminal Block)

Power Consumption: 5W Max.

Protection:

• Power Input Overload: Automatic Resettable
• Reverse Polarity: Present

Dimensions (WxDxH): 150 x 115 x 30 mm

Weight: 0.5Kg

Casing: Metal Case

Mounting Options: DIN-Rail / Wall-mount

Packing and Shipping:

The Industrial Ethernet Switch is carefully packaged to ensure safe and secure delivery to our customers. The packaging materials used are durable and can withstand the rigors of shipping and handling.

• The switch is first placed in a sturdy cardboard box with foam inserts to provide shock absorption.
• All necessary cables and accessories are neatly packed alongside the switch.
• The box is then sealed and labeled with the product name, model number, and serial number for easy identification.

We offer various shipping options to suit our customers' needs. The switch can be shipped via air, sea, or land transportation. We work with reliable logistics partners to ensure timely and safe delivery.

• For air shipments, the switch is securely packed and labeled as per the International Air Transport Association (IATA) regulations.
• For sea shipments, the switch is packed in moisture-resistant materials and loaded into a container for protection.
• For land transportation, the switch is packed and secured in a truck for safe delivery to the final destination.

At Industrial Ethernet Switch, we take great care in packaging and shipping our products to guarantee their arrival in perfect condition. We also offer tracking services to keep our customers updated on the status of their shipments. If you have any further questions or concerns, please don't hesitate to contact us.
