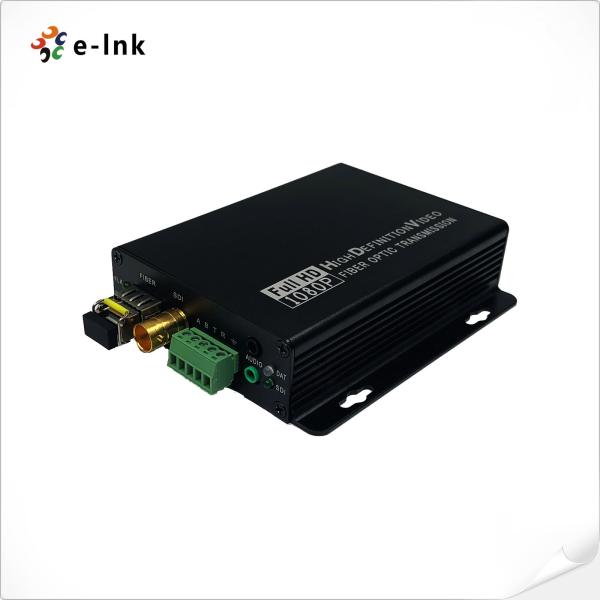

3G SDI Fiber Converter 1Ch Bidirectional RS485 RS232 + 1Ch Stereo Audio

Brand Name : E-link

Model Number : LNK-3GSDI-1V2BD1A Series

Certification : ISO9001

Place of Origin : China

MOQ : 1 unit

Price : negotiation

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 10000pcs/Month

Delivery Time : 5-10 working days

Packaging Details : Fiber Media Converter Standard Package

Fiber Port : Simplex LC

Distance : 20Km

Fiber Wavelength : 1310nm/1550nm

Power Input : DC 5~25V

Product Size : 120 x 105 x 28 mm

Weight : 1.5KG/pair

Contact Now

3G-SDI Fiber Converter with 1Ch Bidirectional RS485 RS232 + 1Ch Stereo Audio
SDI Fiber Converter Advantages

  • 1Ch 3G-SDI Video Input and Output
  • Support external stereo audio transmission
  • 1Ch Bidirectional RS485 + 1Ch Bidirectional RS232
  • Automatic re-clocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
  • Support HDTV 720P, 1080I, 1080P, 1920*1080@60Hz

Overview

LNK-3GSDI-1V2BD1A Series 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video (audio embedded), 1-channel Bidirectional RS485 data, 1-channel Bidirectional RS232 data, and 1-channel external stereo audio signal transmitted via fiber optical cable.

Order Information

Model Description
LNK-3GSDI-1V2BD1A-MM-0.5 1Ch 3G-SDI+1Ch Bidirectional RS485+1Ch Bidirectional RS232+1Ch Stereo Audio over Fiber Converter, Multi mode Fiber, LC, 500m, including Transmitter and Receiver, used by pairs
LNK-3GSDI-1V2BD1A-SM-20 1Ch 3G-SDI+1Ch Bidirectional RS485+1Ch Bidirectional RS232+1Ch Stereo Audio over Fiber Converter, Single Mode Fiber, LC, 20km, including Transmitter and Receiver, used by pairs

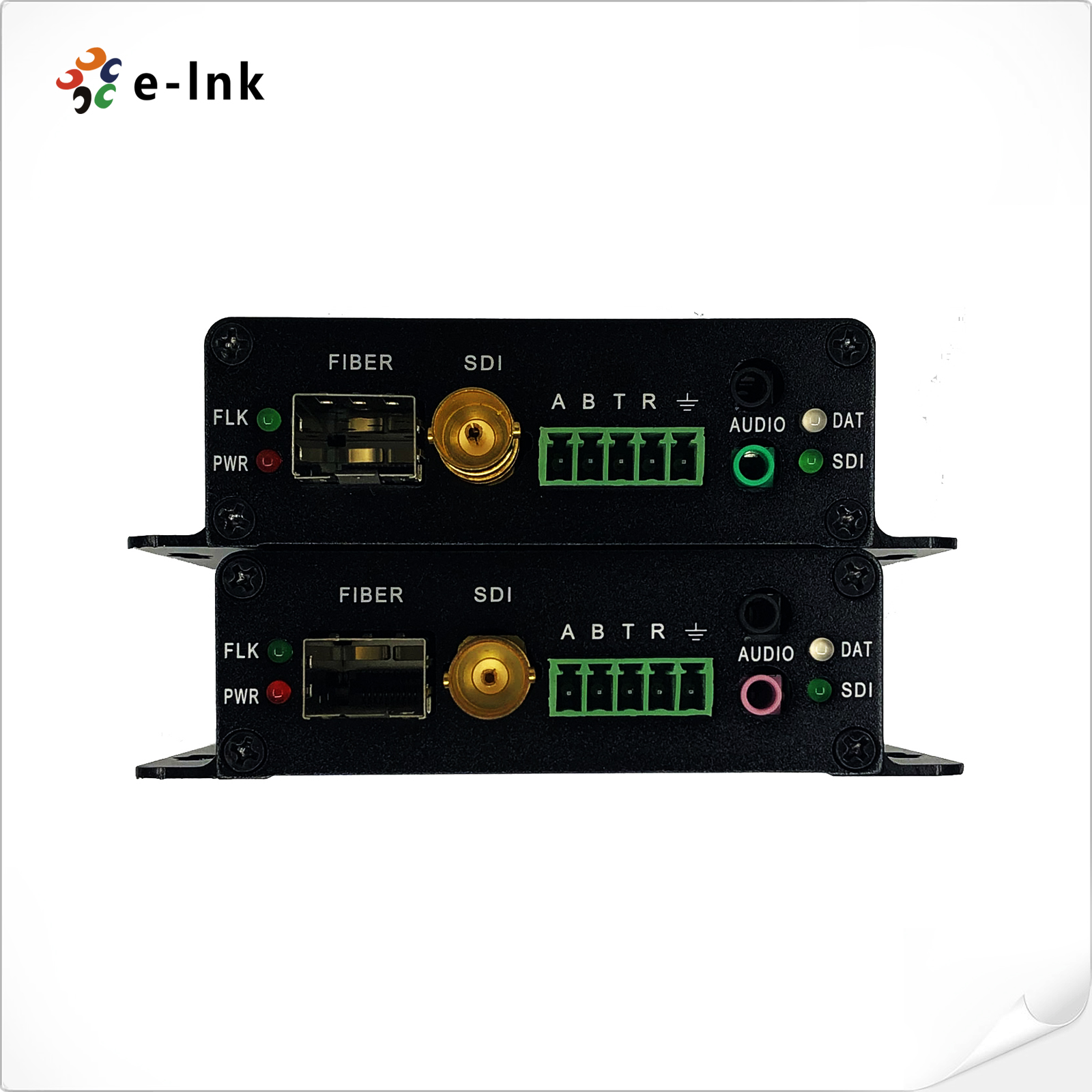

3G SDI Fiber Converter 1Ch Bidirectional RS485 RS232 + 1Ch Stereo Audio

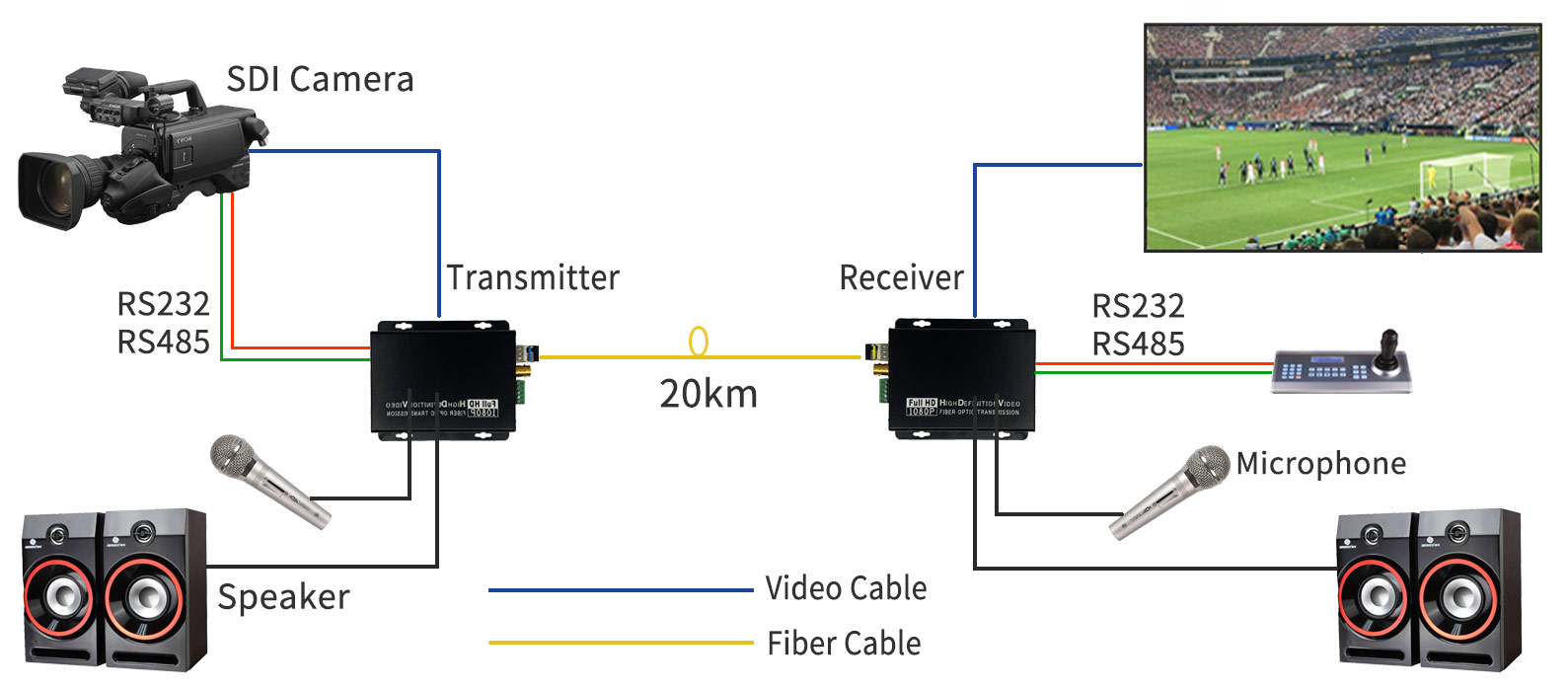

3G SDI Fiber Converter 1Ch Bidirectional RS485 RS232 + 1Ch Stereo Audio

Specifications

Fiber Optical interface
Fiber interface Simplex LC
Transmission distance 550m-20Km
Wavelength 1310nm/1550nm
Video
Video interface BNC
Video input/output impedance 75Ω
Video input/output voltage Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate Max 3.2Gb/s
Differential gain (10%～90% APL) <1%
SDI format support 625/25 PAL
525/29.97 NTSC, 525/23.98 NTSC
720p50, 720p59.94
1080i 23/24/30/50/59.94
1080P 23.98/24/30/50/60
Video SDI standard 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Data
Physical interface Industrial standard screw terminal
Data type RS422/RS485 Bi-Direction
Frequency/Rate support

Max. 115200bps for RS422

Max. 57600bps for RS485
BER <10ˉ9
Audio
Audio input and output 3.5MM Audio
Audio format @48KHz
Electrical
Power adaptor DC 5~25V
Power consumption <5W
LED Indicator
P/S Power Supply
DAT Data
Mechanical
Dimensions (LxWxH) 120 x 105 x 28 mm
Weight 1.5KG/pair
Casing Aluminum Case
Mounting Options Wall-mount
Environmental
Working Temperature -20℃～+70℃
Storage Temperature -40℃～+80℃
Working Humidity 0~95%
MTBF ≥100000 hours
