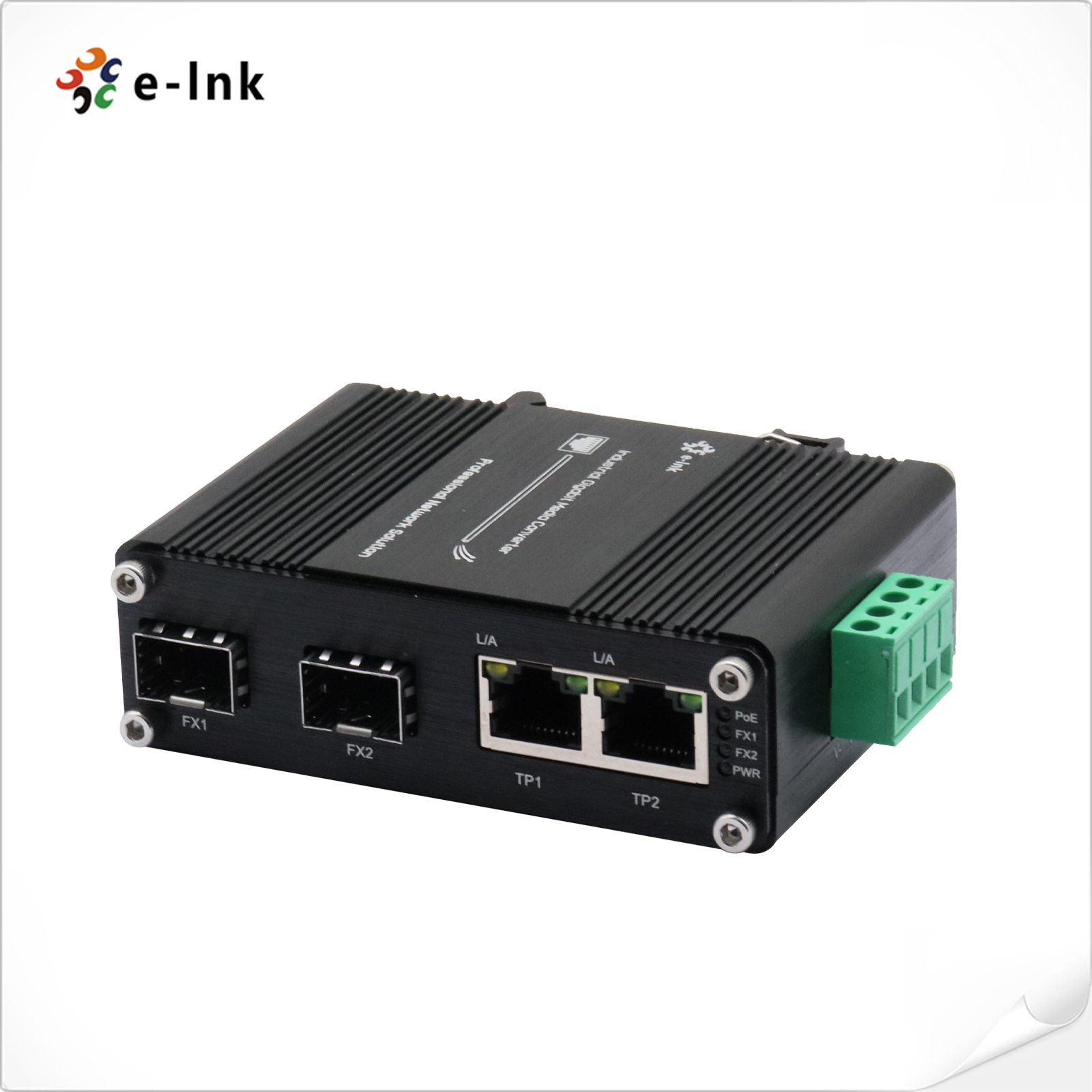

Gigabit RJ45 Mini Ethernet Industrial Gigabit Switch 2 Port 10/100M SFP

Name: Gigabit RJ45 Mini Ethernet Industrial Gigabit Switch 2 Port 10100M SFP
Brand: E-link
Price: 19.9 USD

Wholesale Gigabit RJ45 Mini Ethernet Industrial Gigabit Switch 2 Port 10/100M SFP from china suppliers

Brand Name : E-link

Model Number : LNK-IMC202G-SFP

Certification : ISO9001

Place of Origin : China

MOQ : 1 unit

Price : $19.9-399

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 10000pcs/Month

Delivery Time : 5-10 working days

Packaging Details : Fiber Media Converter Standard Package

Processing Type : Store-and-Forward

Forward Filter Rate : 1,488,000pps (1000Mbps)

Connector : 2 x RJ45 + 2 x SFP

Input Power : 12~48VDC, 2-pin terminal block

Power Consumption : 5W Max.

Size : 95 x 70 x 30 mm

Contact Now

Mini Industrial Gigabit Ethernet Switch 2x 10/100M SFP + 2x Gigabit RJ45 Ports

Industrial Ethernet Switch Advantages

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► 12~48VDC Terminal Block Power Input

Specifications

Interface
Connector:	2 x RJ45
Optical Port:	2 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	5W Max.
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount

Overview

LNK-IMC202G-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

Gigabit RJ45 Mini Ethernet Industrial Gigabit Switch 2 Port 10/100M SFP

Order Information

Model	Description
LNK-IMC202G-SFP	Hardened 2-Port 10/1001000BASE-TX to 2x100/1000BASE-X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
