QSFP28 100GBASE-LR4 20km SMF Duplex LC Transceiver

Name: QSFP28 100GBASELR4 20km SMF Duplex LC Transceiver
Brand: E-link
Price: 1 USD

Wholesale QSFP28 100GBASE-LR4 20km SMF Duplex LC Transceiver from china suppliers

Brand Name : E-link

Model Number : LNK-QSFP28-LR4-20

Certification : RoHS,CE

Place of Origin : China

MOQ : 1pcs

Price : To be negotiated

Payment Terms : L/C,, T/T, Western Union, MoneyGram,Credit Card

Supply Ability : 500PCS/Month

Delivery Time : 5-15working days

Packaging Details : SFP Fiber Transceivers

Keyword : SFP Fiber Transceivers

Max Data Rate : 103.125Gbps

Connector : Duplex LC

Max Cable Distance : 20km

Contact Now

SFP Fiber Transceivers 100GBASE-LR4 QSFP28 20km DOM Duplex LC SMF

SFP Fiber Transceivers Overview

LNK-QSFP28-LR4-20 is designed for use in 100GBASE Ethernet throughput up to 20km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors.It is easy to install, hot swappable transceiver is suitable to be used in various applications, such as Data Center, 100G Ethernet.

SFP Fiber Transceivers Advantages

Support 100GBASE-LR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps
Aggregate bandwidth of > 100Gbps
Duplex LC connectors
Built-in digital diagnostic functions
Two Wire Serial Interface with Digital Diagnostic Monitoring
Temperature range 0°C to 70°C

SFP Fiber Transceivers Technical Description

Form Factor

QSFP28

Max Data Rate

103.125Gbps

Wavelength

1310nm

Max Cable Distance

2km

Connector

Duplex LC

Media

SMF

Transmitter Type

4 x LAN WDM DML TOSA

Receiver Type

TX Power

-1.0~4.5dBm

Receiver Sensitivity

<-9.5dBm

Powerbudget

8.5dB

Receiver Overload

4dBm

Power Consumption

≤.5W

Extinction Ratio

>4dB

DDM/DOM

Supported

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Product Tags:

SFP optical transceiver module 20km

DOM SFP optical transceiver module

Duplex LC 100g lr4 transceiver

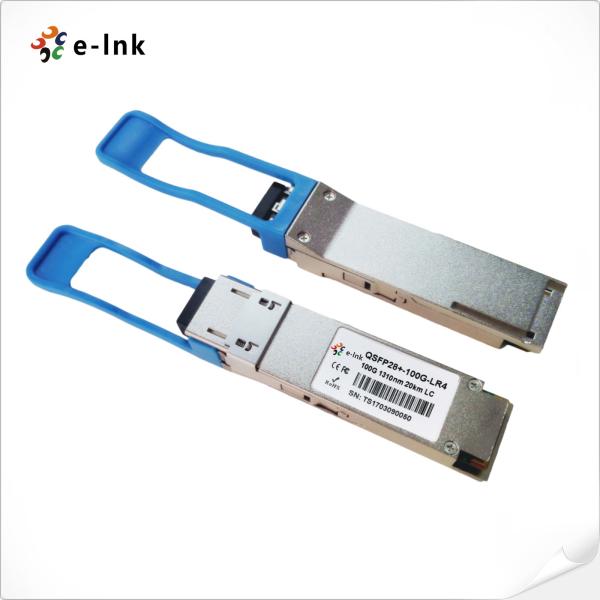

QSFP28 100GBASE-LR4 20km SMF Duplex LC Transceiver Images
