Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter

Name: Mini Industrial 1000BASEX to 101001000BASET 90W PoE Media Converter
Brand: E-link
Price: 1 USD

Wholesale Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter from china suppliers

Brand Name : E-link

Model Number : The LNK-IMC3011P90

Certification : CE, RoHS, FCC

Place of Origin : China

MOQ : 1pair

Price : negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000pcs/month

Delivery Time : 5-12 working days

Packaging Details : Media Converter Standard Export Package

Key Word : Mini Industrial PoE Media Converter

Operating Temperature : -40°C to 75°C

Connector : 1x RJ45

Optical Port : 1 x SC 1000Base-SC

Dimensions (WxDxH） : 95 x 70 x 30 mm

Mounting Options : DIN-Rail / Wall-mount

Contact Now

Mini Industrial PoE Media Converter Advantages

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 1000Base-X SC

► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

Technical Indexes

Interface
Connector:	1x RJ45
Optical Port:	1 x 1000Base-X SC
Electrical and Mechanical
Input Power:	48~57VDC, 4-pin terminal block
Output Power	48VDC
Power Consumption:	95W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
POE:	PoE Status

Overview

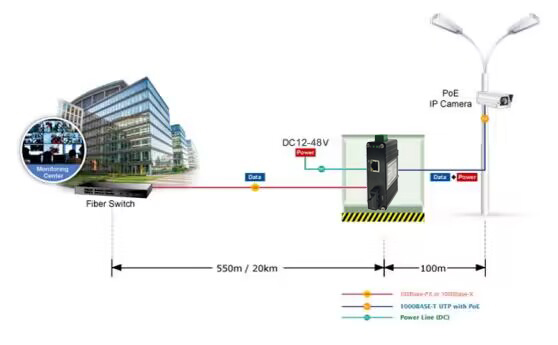

The LNK-IMC3011P90 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. The Ethernet

port support 90W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard.

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter

Ordering Information

Model	Description
LNK-IMC3011P90	Mini Industrial 90W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC3011P90-20	Mini Industrial 90W PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC3011P90S-20	Mini Industrial 90PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
