Name: Wholesale Dante 2Ch Analog Output Dongle Converter Audio Adapter
Brand: E-link
Price: 1 USD

Brand Name : E-link

Model Number : LNK-DAN-D4

Certification : CE, ROHS, FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 5000 Pcs/Month

Delivery Time : 3 working days

Channels of Audio : 2 Channel Analog

Cable length : 30cm

Frequency Response : 20Hz to 20kHz (-/+0.5dB)

Casing : Plastic casing

Net Weight : 145g

Dimensions : 114 x 30 x 28 mm

Contact Now

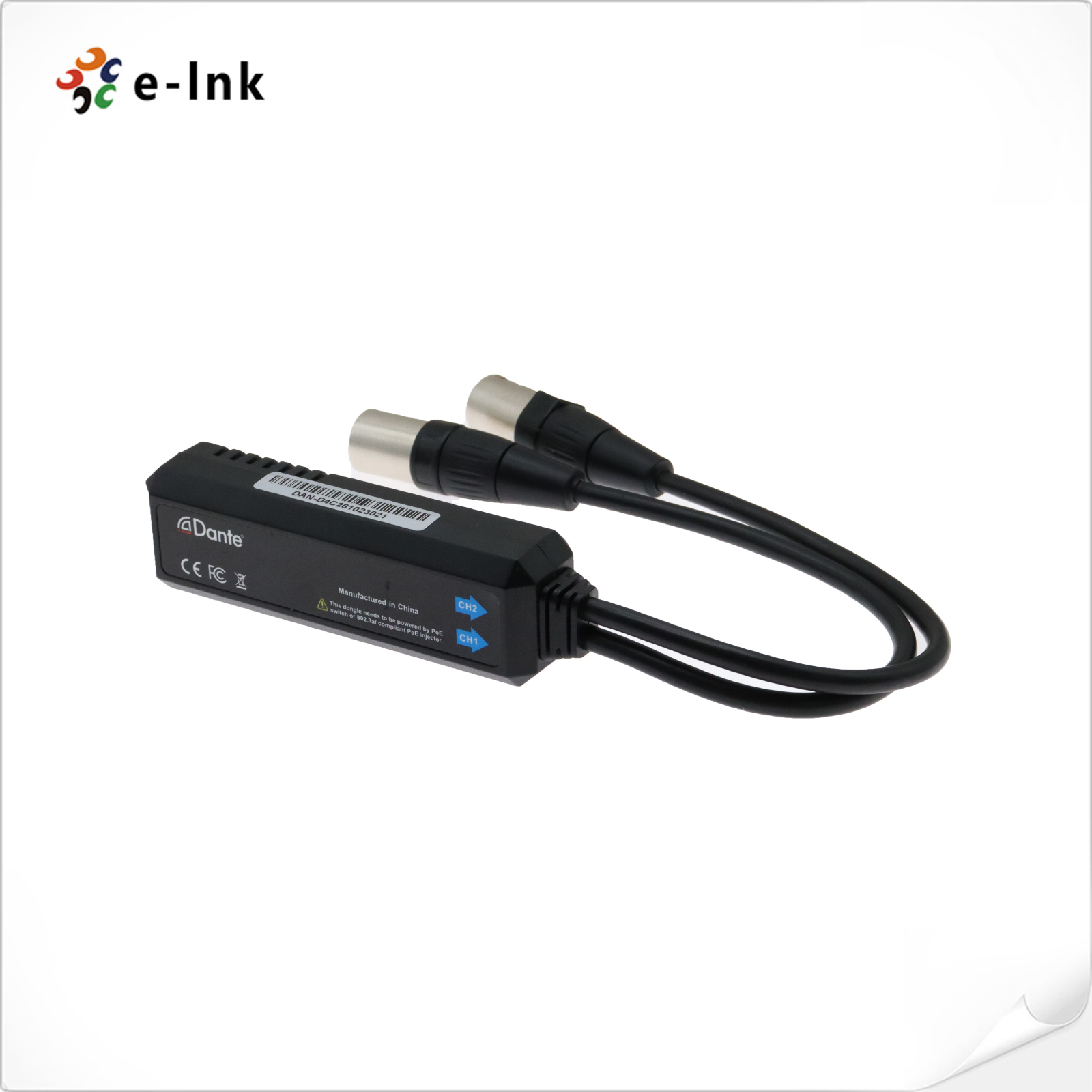

Dante 2Ch Analog Output Dongle Converter Adapter

Dante Converter Advantages

Dante Audio Adapter Technical Indexes

Port
RJ45 Port	Network communication port. Green light on indicates system is ready Yellow light flash indicates link/data traffic. When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device.
XLR Port	2 x XLR port, connect output device
Audio
Max signal level	+18 dBu
Output Gain	-6 dBu
Frequency Response	20Hz to 20kHz(-/+0.5dB)
Impedance	150 Ohm balanced, 75 Ohm unbalanced
Dynamic Range	>100 dB
Signal to Noise Ratio	>100 dB
THD	<0.01% @+4dBu
Dante
Sample Rate	44.1kHz, 48kHz, 96kHz
Bit Depth	24
Dante Device latency	1,2 or 5ms (configurable using Dante Controller)
Type	Analog 0X2
General
Operation Temperature	-5 to +55℃ (+23° to +131°F)
Storage Temperature	-25 to +70℃ (-13° to +158°F)
Power	802.3af PoE
Power Consumption	2.6W(Max)

Wholesale Dante 2Ch Analog Output Dongle Converter Audio Adapter

2Ch Analog adapter Ordering Information

Model	Description
LNK-DAN-D4	Dante 2Ch Analog Output Dongle Converter
