Mini Industrial Gigabit Ethernet PD Switch with Type-C Output
Overview
The LNK-GE-USB-PD product is Mini Industrial PD Ethernet Switch with Type-C Output. This switch offers a flexible connection method for a Type-C USB powered device to join in network through RJ-45 port or optical fiber interface.
This switch is combined with 1 x Type-C USB 3.0 port, 2 x 10/100/1000M RJ-45 ports and 1 x 100/1000M SFP port. The“PoE IN”RJ-45 port accepts PoE (Power over Ethernet) power input from the remote PSE switch or PoE injector, so the switch can work without additional power supply.
The Type-C USB port can support USB PD protocol and deliver 5.0-20V (3.0A max) DC power to laptop computer, tablet computer, smartphone or other equipments.
The additional 100Base-FX/1000Base-X self-adaption SFP port can extend the RJ-45 port to long-distance optical fiber interface.
The LNK-GE-USB-PD product is suitable for 35mm DIN rail installation. An additional L-shaped bracket can be used to replace the DIN rail plate, so the user can install the switch on the wall or a flat surface.
Features
► Supported standard: USB 2.0/3.0, USB PD 2.0, IEEE 802.3 10Base-T /100Base-TX / 1000Base-T, IEEE 802.3u 100Base-FX, IEEE 802.3z 1000Base-X, IEEE 802.3bt, IEEE 802.3at
► USB PD 3.0 charging protocol compatible
► 1x Type-C USB 3.0 port
► 1x 10/100/1000M RJ-45 port
► 1x PoE PD 10/100/1000M RJ-45 port
► 1x 100Base-FX / 1000Base-X auto detection SFP port
► Supports DIN-Rail and Wall-mount installation
Specifications
| Ethernet |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX |
| IEEE802.3ab 1000Base-T |
| IEEE802.3z 1000Base-X |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3at/bt Power over Ethernet |
| | |
| Interface |
| Ethernet Port: | 2 x RJ45 |
| USB Port: | 1 x Type-C |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical |
| USB PD Charging Protocol: | 5V/9V/12V/15V/20V (Max 3.0A, 60W) |
| LED Indicators: |
| USB | USB Status |
| FX L/A: | Data LINK Status |
| SPD | SPD Status |
| PWR: | Power Status |
| SFP Port | |
| Pin Polarity | |
| 100M/1000M: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
| EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
| EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
)
Order Information
| Model | Description |
| LNK-GE-USB-PD | Mini Industrial Gigabit Ethernet PD Switch with Type-C Output |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
|

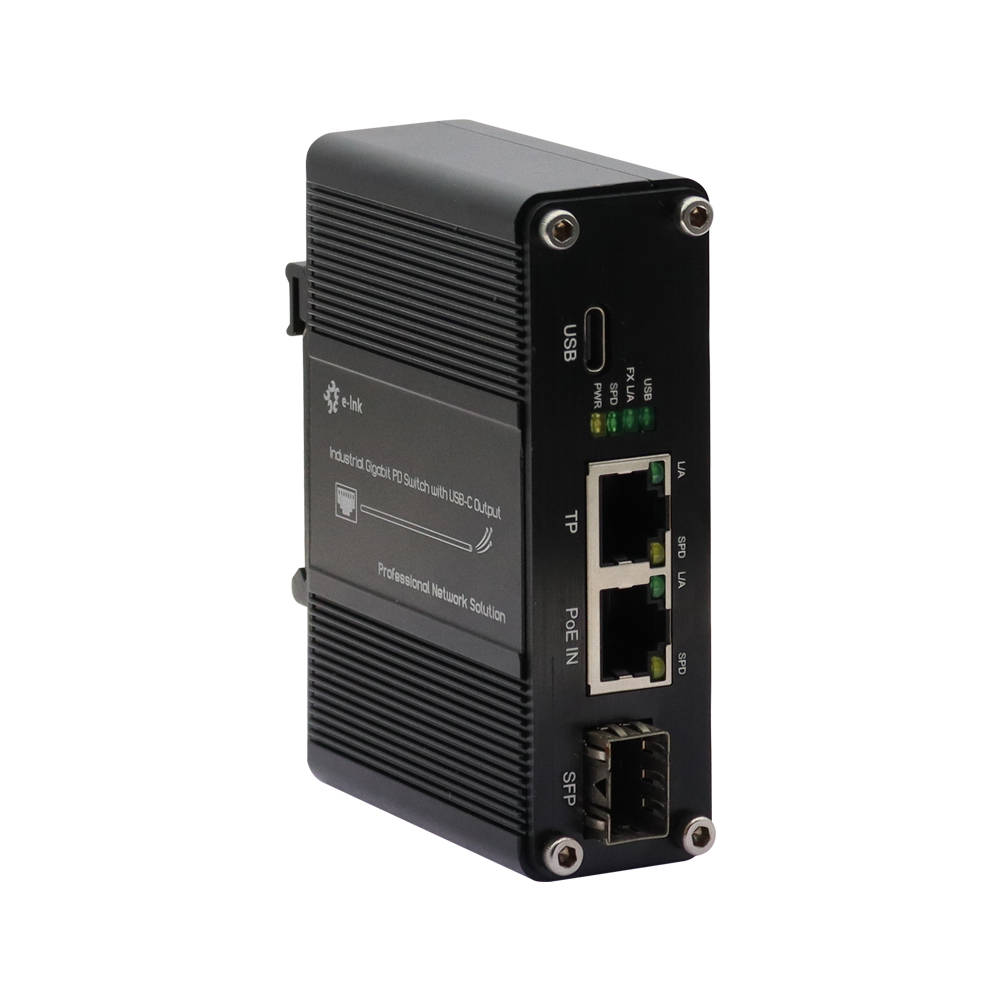

Mini Industrial Gigabit Ethernet PD Switch with Type-C Output Images
|
