IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)
Model:LNK-WP-IPE101
Overview
IP67 Waterproof Industrial Gigabit PoE Extender (model: LNK-WP-IPE101) is a high-performance
industrial-grade network device engineered for harsh environments. As an IP67 Waterproof Industrial
Gigabit PoE Extender, it integrates Power over Ethernet technology to deliver dual functionality:
extending Gigabit Ethernet signals and supplying PoE power, making it a critical component in
industrial network deployments.
This IP67 Waterproof Industrial Gigabit PoE Extender features a 1-in 1-out design with 90W power
handling capacity, capable of extending 1000Mbps Ethernet signals up to 100 meters—effectively
overcoming distance limitations in traditional network setups. Simultaneously, it provides a stable
standard PoE power supply of 50-57V to connected communication devices, supporting seamless
operation of power-hungry equipment like high-definition cameras and industrial sensors.
What defines this IP67 Waterproof Industrial Gigabit PoE Extender is its robust industrial-grade
construction: the housing is built with rugged materials, and the terminal adopts a sealed waterproof
design, both contributing to its IP67 protection rating—ensuring complete resistance to dust ingress
and water immersion up to 1 meter for 30 minutes. Further enhancing its industrial suitability, this IP67
Waterproof Industrial Gigabit PoE Extender operates reliably within an extreme temperature range of
-40°C to 80°C, withstanding humidity, vibration, and other harsh environmental factors.
Ideal for security surveillance systems (where outdoor or damp locations are common) and network
engineering projects (requiring long-distance, reliable connections), the IP67 Waterproof Industrial
Gigabit PoE Extender ensures uninterrupted high-speed data transmission and stable power supply,
making it an indispensable solution for industrial-grade network extension needs.
Features
► IP67-rated aluminum case
► 10/100/1000Mbps Ethernet Ports
► All ports support IEEE 802.3af/at/bt standards
► 1 x Input, 1 x Output
► Enables 100-meter extension of Ethernet connectivity with PoE
► Wall-mountable design
► Wide operating temperature range: -40°C to 80°C
► No external power cable required for installation
► Plug-and-play functionality
► Supports 2K MAC address table for connecting more
► 10kB jumbo frame support in 1000Mbps full-duplex mode
Technical Indexes

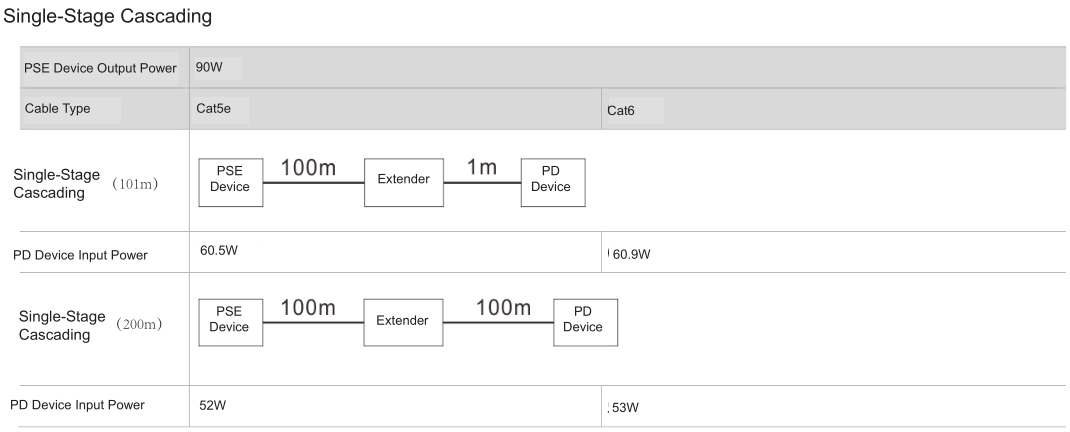

| Ethernet Port | | PoE Input Port | 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands | | PoE Output Port | 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands | | Cascade Connection | Support 3 grade | | Power over Ethernet | | PoE Standard | IEEE 802.3af/at/bt | | PoE Power Supply Type | Mid-span and End-span | | PoE Pin Assignment | 1/2(+), 3/6(-), 4/5 (+), 7/8 (-) | | Input Voltage | IEEE802.3 bt 90W | | PoE Output Power | Maximum 65W | | Single Port PoE Output | Maximum 60W | | Switch Property | | Standards | IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet | | Forwarding Modes | Store and Forward | | Transmission Distance | Each extender extends by 100m, max 3 grade Cascade, total 400m. | | MAC Table | 2K | | Switching Capacity | 6Gbps | | Packet Forwarding Rate | 4.46Mpps | | Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex | | Jumbo Frame | 10K bytes | | Environment | | Surge Immunity | 6KV, Standard: IEC | | ESD Protection | 6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2 | | Protection Level | IP 67 | | Explosion-Proof Rating | IK10 | | Operating Temperature | -40°C to 80°C (-40°F to 176°F) | | Storage Temperature | -40°C to 85°C (-40°F to 185°F) | | Operating Humidity | 0~95% (non-condensing) | | Physical Parameter | | Dimensions (WxDxH) | 195 x 75 x 46 mm | | Weight | 0.6 kg | | Casing | Aluminum Case | | Mounting Options | Wall-mount | | Certifications | | Certifications | CE, FCC, RoHS | |
Ordering Information
| Model | Description |
| LNK-WP-IPE101 | IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 1 x Output |
| Mounting Options | Wall Mount Bracket is included. |
Application
