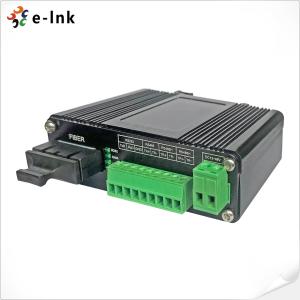

Name: Industrial Serial RS232RS485RS422 Fiber Optic Modem DC12 48V Power Supply
Brand: E-link
Price: 89 USD

Brand Name : E-link

Model Number : LNK-IRS93-SC20

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD89/PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability : 1000000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial Serial Fiber Optic Modem Standard Carton Packaging

Fiber type : SC/ST/FC/LC

Fiber Distance : 9/125 SMF:20/40/60/80Km

Standard : EIA /TIA RS232/485/422

Serial Distance : RS232: 15 meters, RS485/422: 1000 meters

Input Power : DC12~48V

Operating Temperature : -25°C to +75°C

Contact Now

Industrial Serial RS232/RS485/RS422 Fiber Optic Modem DC12~48V Power Supply

Industrial Serial Fiber Optic Modem Advantages:

Plug-and-play, hot pluggable
Extends Bi-directional RS-232/RS-485/RS-422 up to 2Km on MMF, 80Km on SMF
EIA /TIA standard RS232/485/422, 0~2Mbps rate
Serial data is fully transparent, baud rate is self-adaptive, no setting is required
The high speed serial data can used for DMX512 communication in Stage Lighting Control
Support DIN-Rail & Wall-mount installation.
Built-in surge and static protection
Diagnostic and unit indicator LEDs
Environmentally Hardened -40°C to 75°C (-40°F to 176°F) operating temperature

Technical Indexes

Model	LNK-IRS93 Series
Fiber Connector	SC standard, ST/FC/LC optional
Fiber Distance	50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
Serial Interface	Industrial Terminal
Signal Ports	1Ch RS232 - 1Mbps 1Ch R485 - 1Mbps 2Ch RS485H- 2Mbps 2Ch RS485H can be grouped into 1Ch High Speed RS422
Serial Distance	RS232: 15 meters, RS485/422: 1000 meters
Rate	Max 2Mbps
RS-232	TXD, RXD, GND - Bi-directional
RS-485	D+, D-, GND - Bi-directional
Power Supply	DC12~48V
Power rate	<5W
Static protection	15KV electric static discharge (ESD) protection
Surge protection	1500W/sec surge protection
Operation Temperature	-25°C to +75°C
Storage Temperature	-40°C to +85°C
Storage Humidity	5%~90% non-condescending
Dimensions	95(L)70(W)29(H) mm
Weight	0.25kg/pcs

Overview

LNK-IRS93 series is an industrial grade RS232/RS485/RS422 to fiber optic converter which converts a standard RS232/RS485/RS422

signal to a fiber optic link as to extend the signal up to 2Km on multimode fiber and 80Km on single mode fiber.

Industrial Serial RS232/RS485/RS422 Fiber Optic Modem DC12 - 48V Power Supply

Ordering Information

Model	Description
LNK-IRS93-SFP	Industrial Serial RS232/RS485/RS422 with SFP port
LNK-IRS93-SCMM	Industrial Serial RS232/RS485/RS422 , SC MM 850nm, 550m
LNK-IRS93-SC20	Industrial Serial RS232/RS485/RS422 , SC SM 1310nm, 20m
Mounting Options	Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	Power Supply is to be purchased separately
